quick and easy installation
no technician required – install with easy–to–follow steps
installation method 1: under your sink
installation method 2: fridge/ice maker
tech specs
Dispensing Area
- 12 x 3.25 x 7.5
Hot/Cold/Room Temp Output
- 1.2L/min / 1.2L/min / 1.0L/min
Hot Water Capacity
- 4 L/H (≥ 185°F)
Hot Tank Volume
- 1.16 Liters
Cold Water Capacity
- 2.5 L/H ( ≤ 50°F)
Cold Tank Volume
- 3.6 Liters
Applicable Water Pressure
- 0.1-0.4 MPa
Applicable Environment
- 39 ~ 104°F humidity ≤90%
Applicable Water
- Tap Water TDS ≤ 350 ppm
Applicable Water Temperature
- 41 ~ 100.4°F

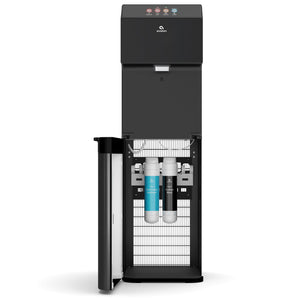

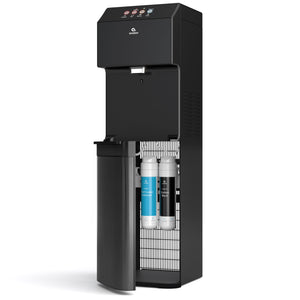

Stage 1 Filtration
- Sediment
Stage 2 Filtration
- Carbon Block
Product Size
- 13”(L)x12”(W)x41”(H)
Packing Size
- 16”(L)x15”(W)x45”(H)
Net Weight/Gross Weight
- 36.15 lb/46.5 lb
Voltage/Frequency
- 115V 60Hz
Cooling Method
- Compressor
Heating Method
- Internal Element
Heating Watts/Cooling Watts
- 420W/100W
Power Consumption
- 520W
avalon A13 FAQ's
Because you'll own your water cooler, there are no monthly rental fees, no water cooler leasing fees and no water jug delivery fees. All Avalon water coolers are Energy Star approved and very energy efficient so there is a minimal increase to the cost of your electric bill.
Our freestanding point-of-use water coolers are easy to install so there is no need to hire a plumber. However, if you are installing the Avalon A13 water cooler in a location that does not have a water line, you may want to have a plumber install a new water line.
We recommend that the water cooler's filters should be changed about every 6 months or after 1500 gallons of water used, depending on which comes first.
Our electric water coolers are not weather-proof and therefore not recommended to be used outdoors.
Depending on the usage, it is best to have 1 office water cooler for about 20-25 people. If you have a larger office or very heavy usage we would suggest additional units.
